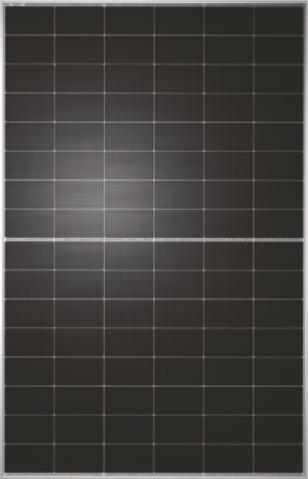

435-455W Mono BIFACIAL DG 96 Half-Cell Layout G12R N-TYPE Cell
Product Description
LECO N-TYPE Cell Technology
SMBB Half Cut Cell Technology
Bifacial Cell Module Technologies
Excellent Anti-PID Low LID Performance
Less Hot Spot Shading Effects
Higher Power Output Lower BOS & LCOE
Linear Performance Warranty
Comprehensive Certificates
● ISO9001:2015 QMS
● SO14001:2015 EMS
● ISO45001:2018 OHSMS
● IEC61215/IEC61730 Standard Quality
● IEC61701/IEC62716 Salt/Mist/Ammonia Tests
MECHANICAL CHARACTERISTICS
| Solar Cells | N-type Mono |
| No. of Cells | 96 (6x16) |
| Dimensions | 1762 x 1134 x 30mm |
| Weight | 24.0kg |
| Front Glass | 2.0mm coated semi-tempered glass |
| Frame | Anodized aluminium alloy (reinforced high-load optional) |
| Junction Box | Ip68 rated (3 by pass diodes) |
| Output Cables | 4.0mm² |
| 250mm (+) / 350mm (-) | |
| Length can be customized | |
| Connectors | Mc4 compatible |
| Mechanical load test | Front 5400Pa / Rear 2400Pa |
ELECTRICAL PARAMETERS
| POWER CLASS | ALDX-435N | ALDX-440N | ALDX-445N | ALDX-450N | ALDX-455N | |||||
|---|---|---|---|---|---|---|---|---|---|---|
| STC | NMOT | STC | NMOT | STC | NMOT | STC | NMOT | STC | NMOT | |
| Maximum power (Pmax) | 435W | 326W | 440W | 330W | 445W | 334W | 450W | 338W | 455W | 342W |
| Open Circuit Voltage (Voc) | 34.49V | 32.33V | 34.74V | 32.58V | 34.97V | 32.82V | 35.21V | 33.07V | 35.45V | 35.68V |
| Short Circuit Current (Isc) | 15.84A | 12.67A | 15.90A | 12.72A | 15.96A | 12.77A | 16.02A | 12.82A | 16.08A | 12.86A |
| Voltage at Maximum power (Vmpp) | 29.43V | 27.57V | 29.65V | 27.80V | 29.87V | 28.02V | 30.08V | 28.24V | 30.29V | 28.46V |
| Current Maximum Power (Impp) | 14.78A | 11.82A | 14.84A | 11.87A | 14.90A | 11.92A | 14.96A | 11.97A | 15.02A | 12.02A |
| MODULE EFFICIENCY (%) | 21.77% | 22.02% | 22.27% | 22.52% | 22.77% | |||||

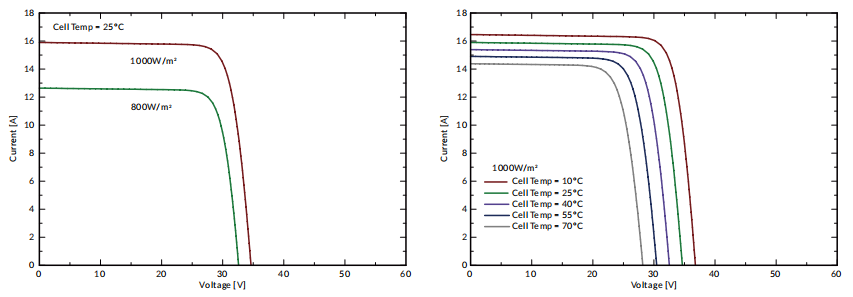

| STC: Irradiance 1000W/m², cell temperature 25°C, AM1.5G NMOT: Irradiance 800W/m², ambient temperature 20°C, wind speed 1m/s, AM1.5G |
||||||||||
BIFACIAL OUTPUT-REARSIDE POWER GAIN
| Rear Gain | Parameter | 1 | 2 | 3 | 4 | 5 |
|---|---|---|---|---|---|---|
| 5% | Maximum power (Pmax) | 457W | 462W | 467W | 473W | 478W |
| Module Efficiency STC (%) | 22.86% | 23.12% | 23.38% | 23.65% | 23.91% | |
| 15% | Maximum power (Pmax) | 500W | 506W | 512W | 518W | 523W |
| Module Efficiency STC (%) | 25.04% | 25.32% | 25.61% | 25.90% | 26.19% | |
| 25% | Maximum Power (Pmax) | 544W | 550W | 556W | 563W | 569W |
| Module Efficiency STC (%) | 27.21% | 27.53% | 27.84% | 28.15% | 28.46% |
PACKING CONFIGURATION
| Container | 40'HQ |
| Pieces per pallet | 36 |
| Pallets per container | 26 |
| Pieces per container | 936 |
OPERATING CHARACTERISTICS
| Operating Module Temperature | -40℃ to +85℃ |
| Maximum System Voltage | 1500 DC (IEC) |
| Maximum Series Fuse Rating | 30A |
| Power Tolerance | 0/+5W |
TEMPERATURE CHARACTERISTICS
| Nominal Operating Temperature (NMOT) | 45±2℃ |
| Temperature Coefficient of Pmax | -0.29%/℃ |
| Temperature Coefficient of Voc | -0.25%/℃ |
| Temperature Coefficient of Isc | +0.045%/℃ |

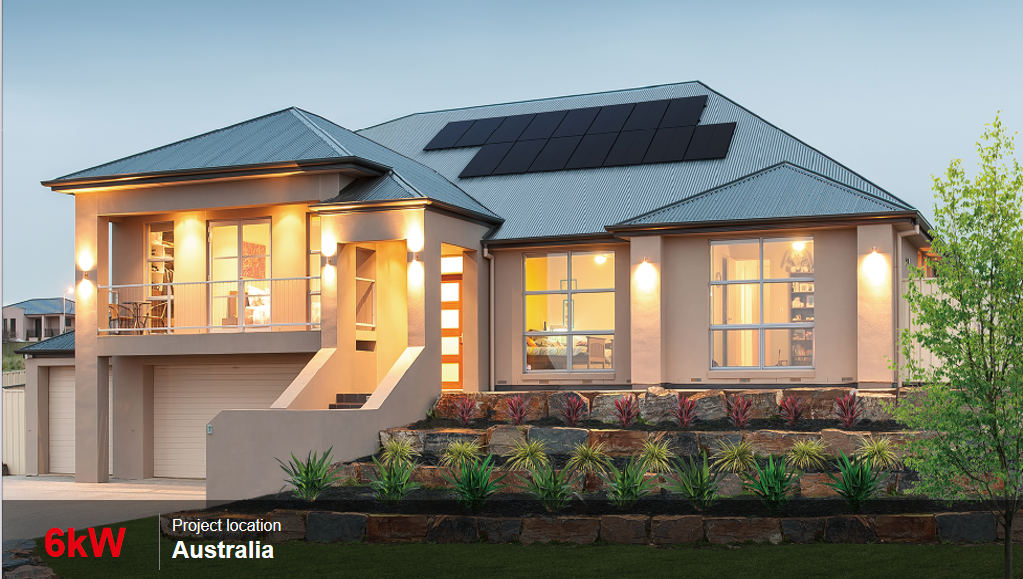

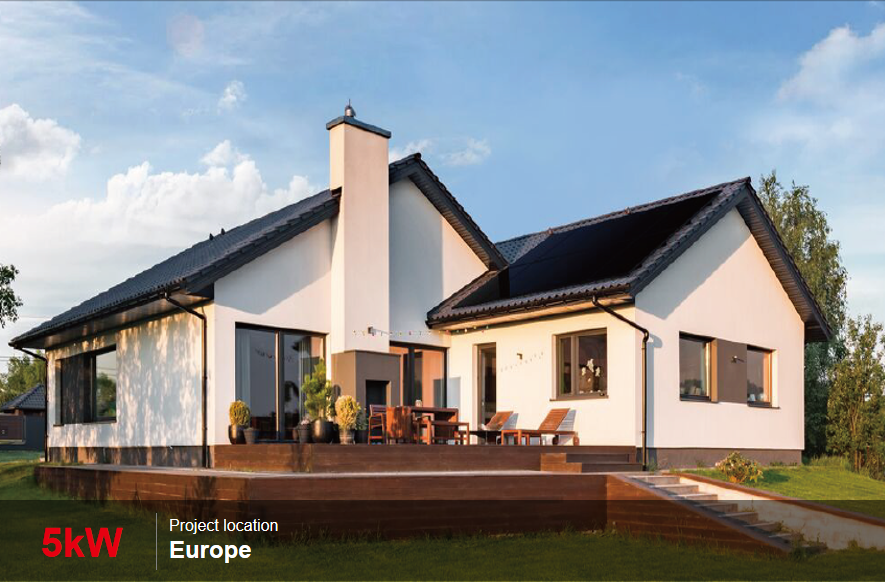

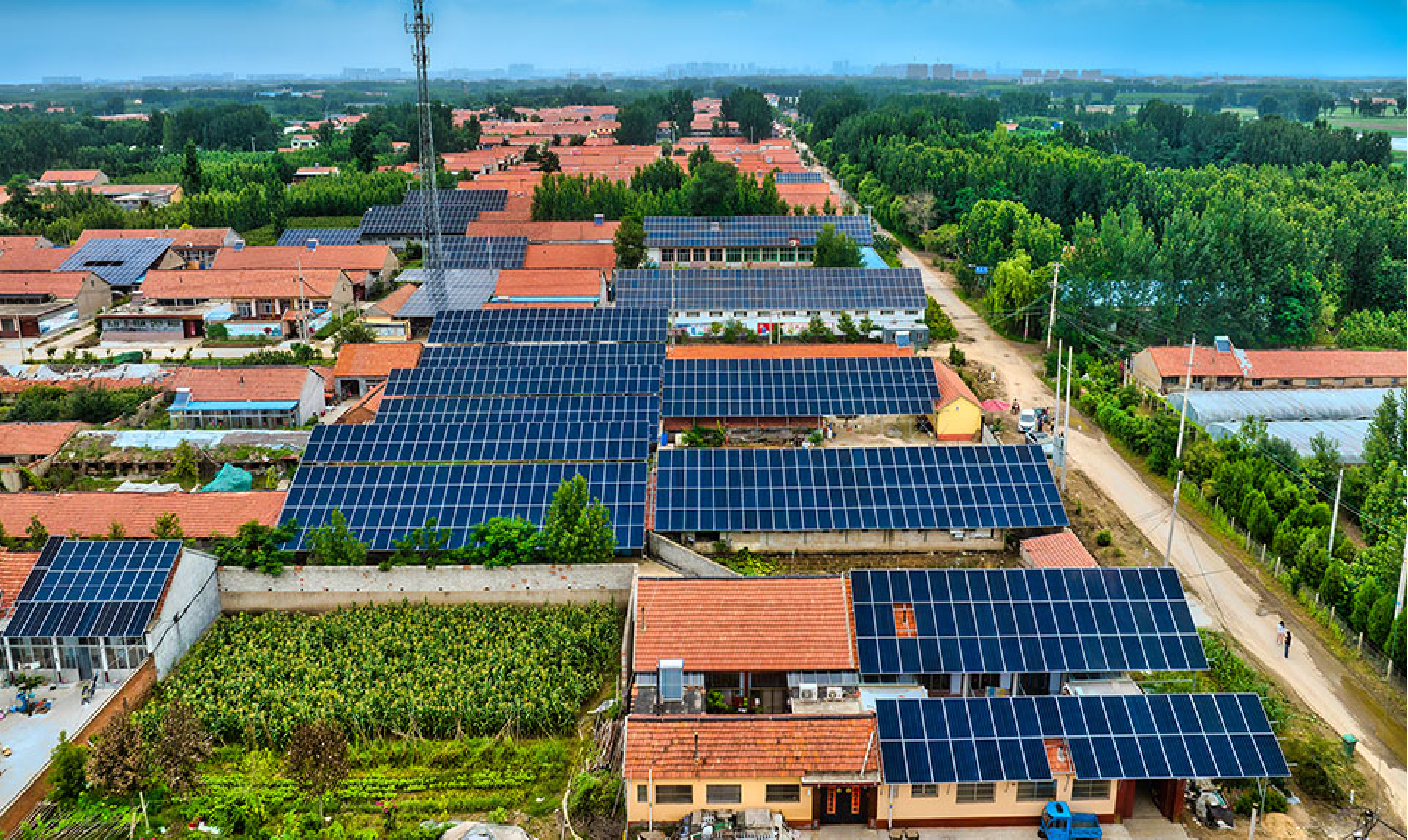

Project Cases
