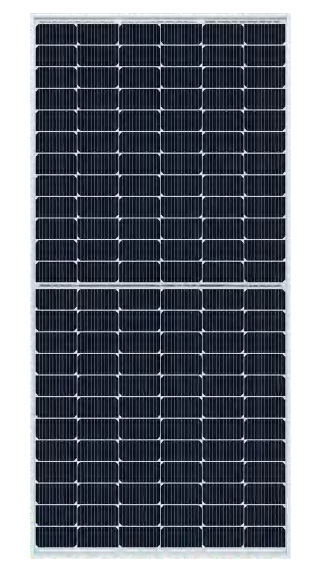

570 – 590W Mono BIFACIAL DG 144 Half-Cell Layout M10 N-TYPE Cell
Product Description
LECO N-TYPE Cell Technology
SMBB Half Cut Cell Technology
Bifacial Cell ModuleTechnologies
Excellent Anti-PID Low LID Performance
Less Hot Spot Shading Effects
Higher Power Output Lower BOS & LCOE
Linear Performance Warranty
Comprehensive Certificates
● ISO9001:2015 QMS
● ISO14001:2015 EMS
● ISO45001:2018 OHSMS
● IEC61215/IEC61730 Standard Quality
● IEC61701/IEC62716 Salt/Mist/Ammonia Tests

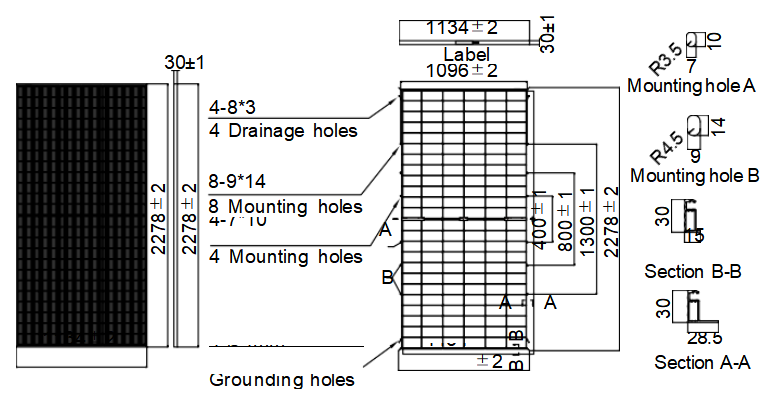

MECHANICAL CHARACTERISTICS
| Solar Cells | N-type Mono |
| No. of Cells | 144 (6x24) |
| Dimensions | 2278 x 1134 x 30mm |
| Weight | 31.5kg |
| Front / Back Glass | 2.0mm coated semi-tempered glass |
| Frame | Anodized aluminium alloy (reinforced high-load optional) |
| Junction Box | Ip68 rated (3 by pass diodes) |
| Output Cables | 4.0mm² |
| 250mm (+) / 350mm (-) | |
| Length can be customized | |
| Connectors | Mc4 compatible |
| Mechanical load test | Front 5400Pa / Rear 2400Pa |
ELECTRICAL PARAMETERS
| POWER CLASS | ALVU-570ND | ALVU-575ND | ALVU-580ND | ALVU-585ND | ALVU-590ND | |||||
|---|---|---|---|---|---|---|---|---|---|---|
| STC | NMOT | STC | NMOT | STC | NMOT | STC | NMOT | STC | NMOT | |
| Maximum power (Pmax) | 570W | 429W | 575W | 433W | 580W | 437W | 585W | 441W | 590W | 445W |
| Open Circuit Voltage (Voc) | 51.41V | 48.69V | 51.55V | 48.82V | 51.68V | 48.96V | 51.81V | 49.09V | 51.94V | 49.23V |
| Short Circuit Current (Isc) | 14.15A | 11.41A | 14.22A | 11.47A | 14.29A | 11.53A | 14.36A | 11.59A | 14.43A | 11.65A |
| Voltage at Maximum power (Vmpp) | 42.41V | 39.36V | 42.56V | 39.51V | 42.71V | 39.66V | 42.86V | 39.80V | 43.00V | 39.95V |
| Current Maximum Power (Impp) | 13.44A | 10.90A | 13.51A | 10.96A | 13.58A | 11.02A | 13.65A | 11.08A | 13.72A | 11.14A |
| MODULE EFFICIENCY (%) | 22.07% | 22.26% | 22.45% | 22.65% | 22.84% | |||||
STC: Irradiance 1000W/m², cell temperature 25ºC, AM1.5G
NMOT: Irradiance 800W/m², ambient temperature 20ºC, wind speed 1m/s, AM1.5G
| Rear Gain | Parameter | 1 | 2 | 3 | 4 | 5 |
|---|---|---|---|---|---|---|
| 5% | Maximum power (Pmax) | 599W | 604W | 609W | 614W | 620W |
| Module Efficiency STC (%) | 23.17% | 23.37% | 23.57% | 23.78% | 23.98% | |
| 15% | Maximum power (Pmax) | 656W | 661W | 667W | 673W | 679W |
| Module Efficiency STC (%) | 25.37% | 25.60% | 25.82% | 26.04% | 26.27% | |
| 25% | Maximum Power (Pmax) | 713W | 719W | 725W | 731W | 738W |
| Module Efficiency STC (%) | 27.58% | 27.82% | 28.07% | 28.31% | 28.55% |
PACKING CONFIGURATION
| Container | 20'GP | 40'HQ |
| Pieces per pallet | 36 | 36 |
| Pallets per container | 5 | 20 |
| Pieces per container | 180 | 720 |
OPERATING CHARACTERISTICS
| Operating Module Temperature | -40℃ to +85℃ |
| Maximum System Voltage | 1500 DC (IEC) |
| Maximum Series Fuse Rating | 30A |
| Power Tolerance | 0/+5W |
TEMPERATURE CHARACTERISTICS
| Nominal Operating Temperature (NMOT) | 45±2℃ |
| Temperature Coefficient of Pmax | -0.29%/℃ |
| Temperature Coefficient of Voc | -0.25%/℃ |
| Temperature Coefficient of Isc | +0.045%/℃ |
