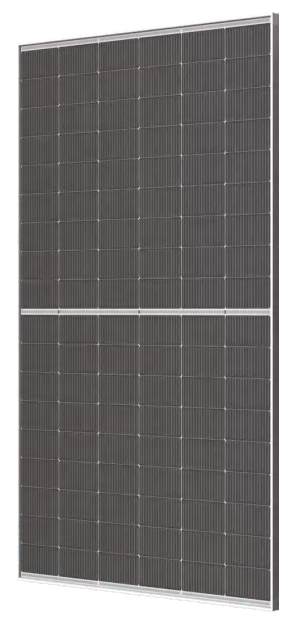

490 – 510W Mono BIFACIAL DG 108 Half-Cell Layout G12R N-TYPE Cell
Product Description
LECO N-TYPE Cell Technology
SMBB Half Cut Cell Technology
Bifacial Cell ModuleTechnologies
Excellent Anti-PID Low LID Performance
Less Hot Spot Shading Effects
Higher Power Output Lower BOS & LCOE
Linear Performance Warranty
Comprehensive Certificates
● ISO9001:2015 QMS
● ISO14001:2015 EMS
● ISO45001:2018 OHSMS
● IEC61215/IEC61730 Standard Quality
● IEC61701/IEC62716 Salt/Mist/Ammonia Tests

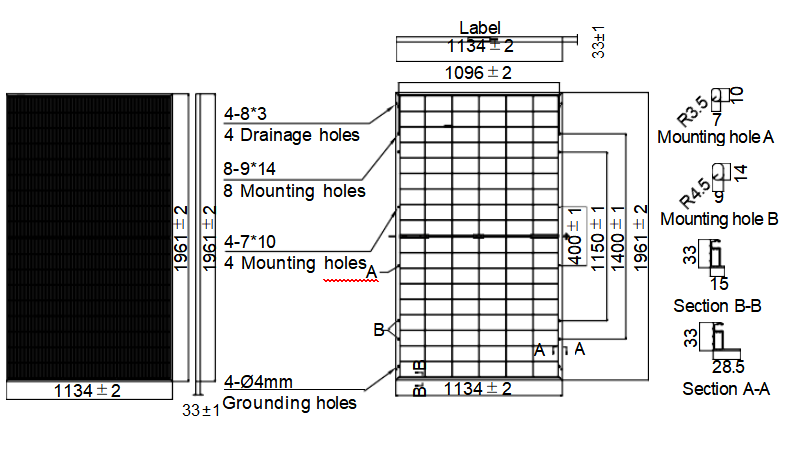

MECHANICAL CHARACTERISTICS
| Solar Cells | N-type Mono |
| No. of Cells | 108 (6x18) |
| Dimensions | 1961 x 1134 x 33mm |
| Weight | 27.8kg |
| Front / Back Glass | 2.0mm coated semi-tempered glass |
| Frame | Anodized aluminium alloy (reinforced high-load optional) |
| Junction Box | Ip68 rated (3 by pass diodes) |
| Output Cables | 4.0mm² |
| 250mm (+) / 350mm (-) | |
| Length can be customized | |
| Connectors | Mc4 compatible |
| Mechanical load test | Front 5400Pa / Rear 2400Pa |

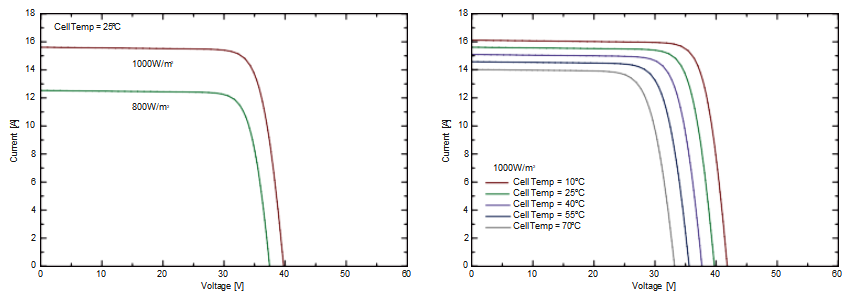

ELECTRICAL PARAMETERS
| POWER CLASS | ALDB-490ND | ALDB-495ND | ALDB-500ND | ALDB-505ND | ALDB-510ND | |||||
|---|---|---|---|---|---|---|---|---|---|---|
| STC | NMOT | STC | NMOT | STC | NMOT | STC | NMOT | STC | NMOT | |
| Maximum power (Pmax) | 490W | 368W | 495W | 372W | 500W | 376W | 505W | 380W | 510W | 384W |
| Open Circuit Voltage (Voc) | 39.55V | 37.12V | 39.78V | 37.36V | 40.00V | 37.59V | 40.22V | 37.83V | 40.44V | 38.06V |
| Short Circuit Current (Isc) | 15.72A | 12.58A | 15.78A | 12.62A | 15.84A | 12.67A | 15.90A | 12.72A | 15.96A | 12.77A |
| Voltage at Maximum power (Vmpp) | 33.11V | 31.08V | 33.31V | 31.29V | 33.51V | 31.50V | 33.71V | 31.71V | 33.91V | 31.91V |
| Current Maximum Power (Impp) | 14.80A | 11.84A | 14.86A | 11.89A | 14.92A | 11.94A | 14.98A | 11.98A | 15.04A | 12.03A |
| MODULE EFFICIENCY (%) | 22.03% | 22.26% | 22.48% | 22.71% | 22.93% | |||||
STC: Irradiance 1000W/m², cell temperature 25ºC, AM1.5G
NMOT: Irradiance 800W/m², ambient temperature 20ºC, wind speed 1m/s, AM1.5G
| Rear Gain | Parameter | 1 | 2 | 3 | 4 | 5 |
|---|---|---|---|---|---|---|
| 5% | Maximum power (Pmax) | 515W | 520W | 525W | 530W | 536W |
| Module Efficiency STC (%) | 23.14% | 23.37% | 23.61% | 23.84% | 24.08% | |
| 15% | Maximum power (Pmax) | 564W | 569W | 575W | 581W | 587W |
| Module Efficiency STC (%) | 25.34% | 25.60% | 25.86% | 26.12% | 26.37% | |
| 25% | Maximum Power (Pmax) | 613W | 619W | 625W | 631W | 638W |
| Module Efficiency STC (%) | 27.54% | 27.82% | 28.11% | 28.39% | 28.67% |
PACKING CONFIGURATION
| Container | 40'HQ |
| Pieces per pallet | 34 |
| Pallets per container | 24 |
| Pieces per container | 816 |
OPERATING CHARACTERISTICS
| Operating Module Temperature | -40℃ to +85℃ |
| Maximum System Voltage | 1500 DC (IEC) |
| Maximum Series Fuse Rating | 30A |
| Power Tolerance | 0/+5W |
TEMPERATURE CHARACTERISTICS
| Nominal Operating Temperature (NMOT) | 45±2℃ |
| Temperature Coefficient of Pmax | -0.29%/℃ |
| Temperature Coefficient of Voc | -0.25%/℃ |
| Temperature Coefficient of Isc | +0.045%/℃ |

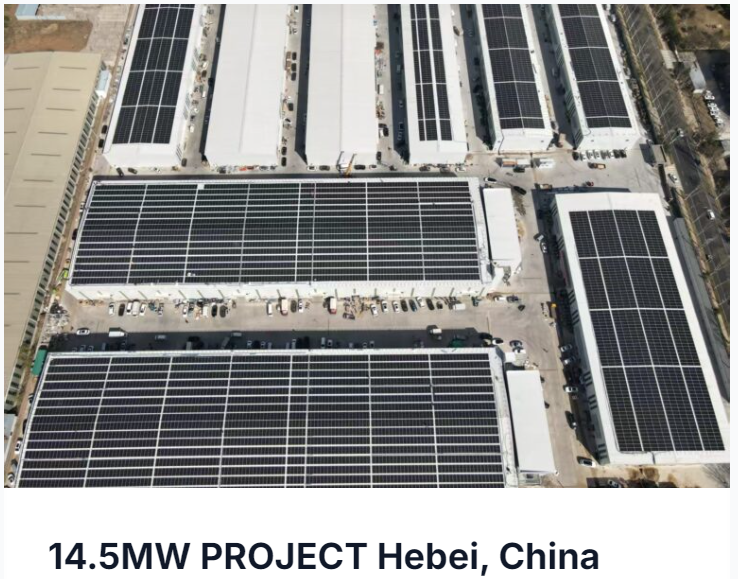

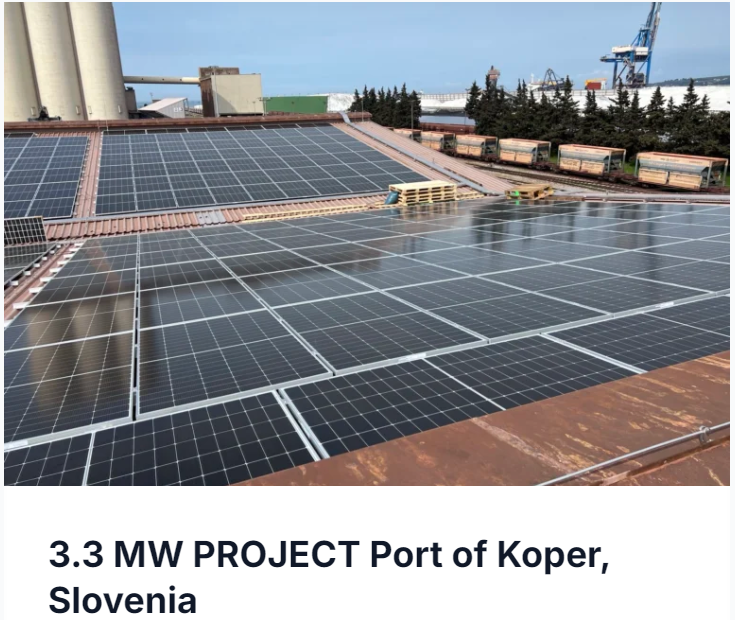

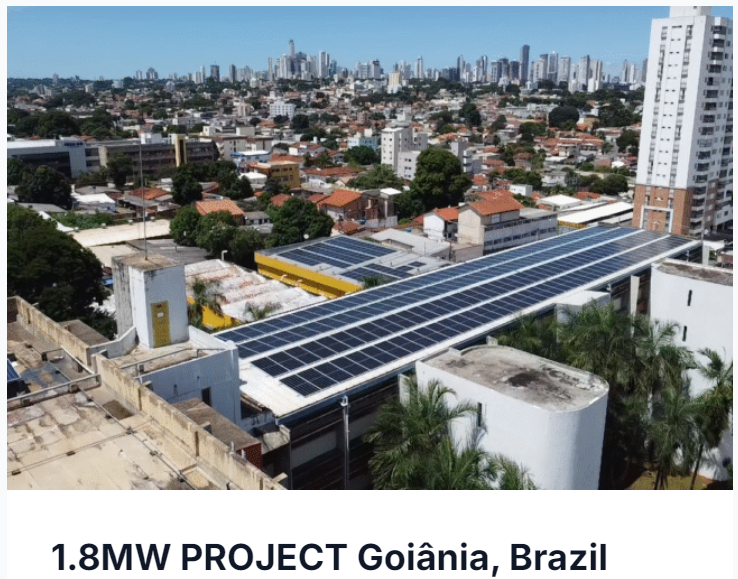

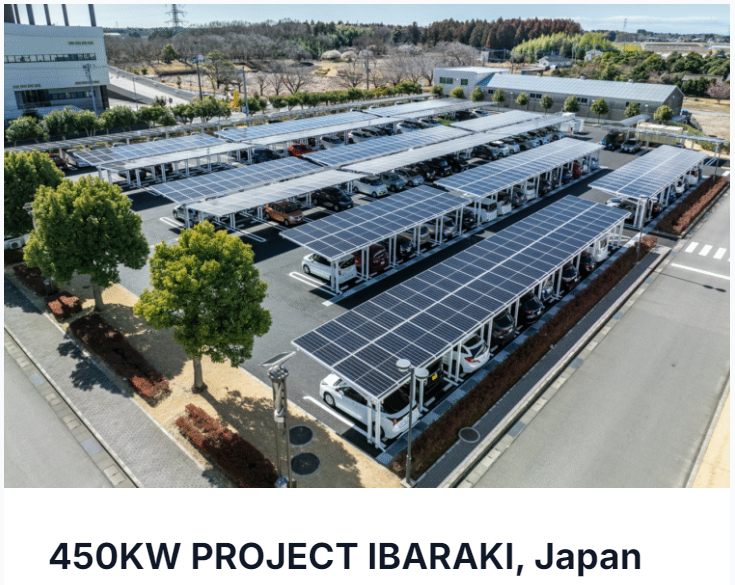

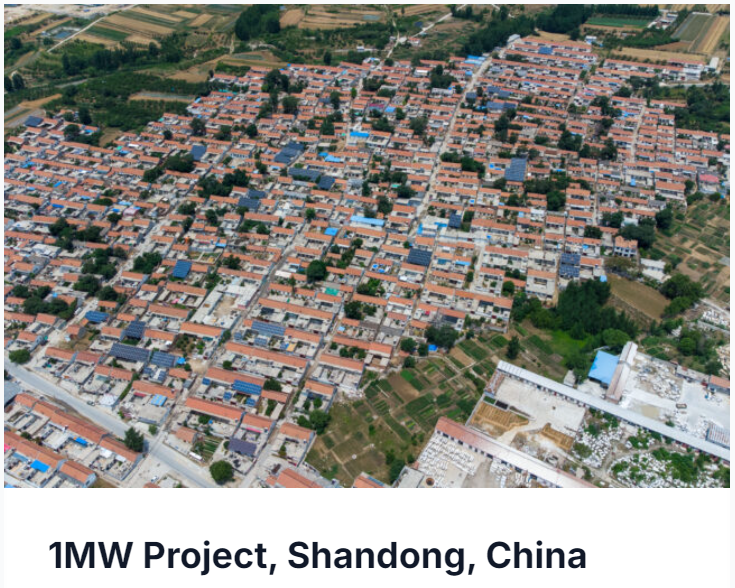

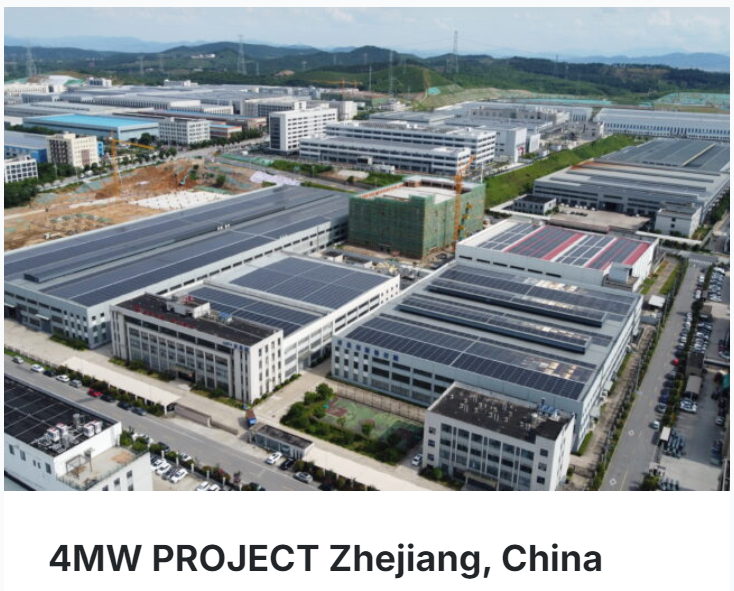

Project Cases
