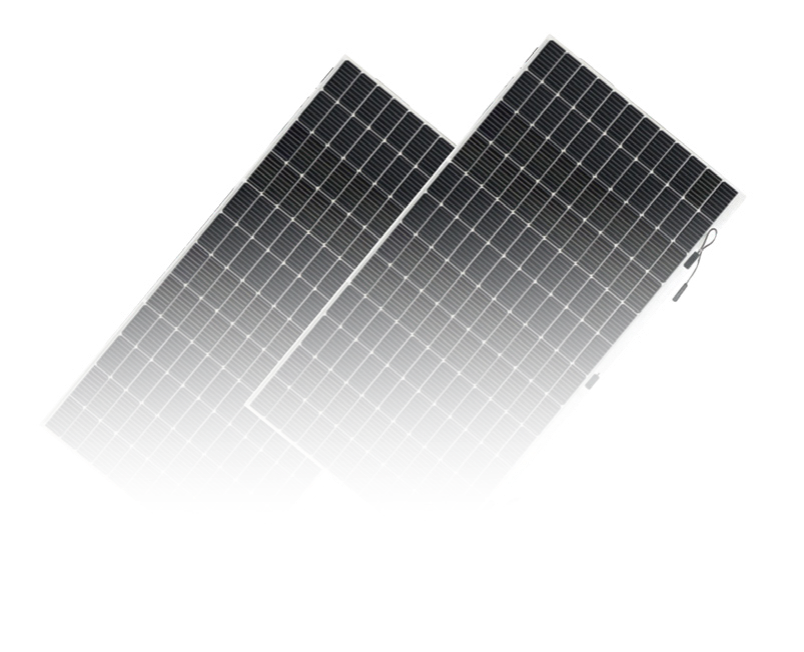

580W Flexible Photovoltaic Solar Panels
ELECTRICAL PROPERTY PARAMETER
| ELECTRICAL PROJECT | PARAMETERS | ||||
|---|---|---|---|---|---|
| Maximum power | Pmax(W) | 550 | 560 | 570 | 580 |
| Optimum operating voltage | Vmp(V) | 42.63 | 43.18 | 43.68 | 44.19 |
| Optimum operating current | Imp(A) | 12.91 | 12.97 | 13.05 | 13.13 |
| Open-circuit voltage | Voc(V) | 52.32 | 52.58 | 52.77 | 53.03 |
| Short-circuit current | Isc(A) | 13.65 | 13.69 | 13.78 | 13.86 |
| Module operating temperature range | ℃ | -40℃~+85℃ | |||
| Maximum system voltage | V(IEC) | DC1000/1500 | |||
| Maximum fuse current | A | 25 | |||
| Power tolerance range | % | 0~+3% | |||
| *STC(Standard test circumstance): Frontal irradiation 1000W/m², Cell temperature 25℃, Spectrum AM1.5. | |||||
TEMPERATURE COEFFICIENT
| Rated operating temperature of the cell | VOCT | ℃ | 44℃±2℃ |
| Maximum power temperature coefficient | Pmax | %/℃ | -0.26 |
| Open-circuit voltage temperature coefficient | Voc | %/℃ | -0.24 |
| Short-circuit current temperature coefficient | Isc | %/℃ | 0.04 |
SAFETY LEVEL & WARRANTY
| Safety level | Class II |
| Product warranty | 12 years of product materials and technology |
| Power warranty | 25 years linear power output |

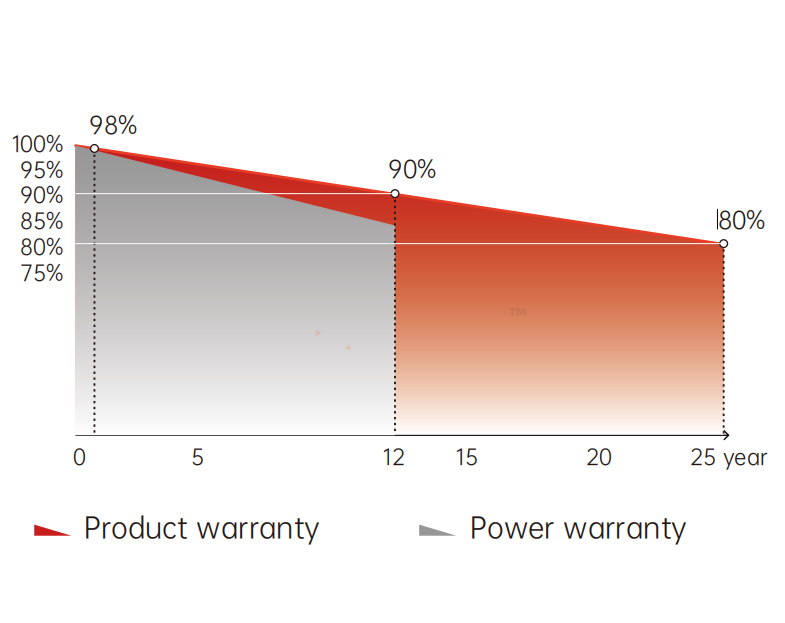

| *The attenuation in the first year is 2%. From the following year, the annual decline is less than 0.5%. The module power is no less than 80% in the 25th year. |
|
MECHANICAL PARAMETER
| Cell type | TOPCon cell 182×91mm |
| Cell arrangement | 144 pcs (12×12) |

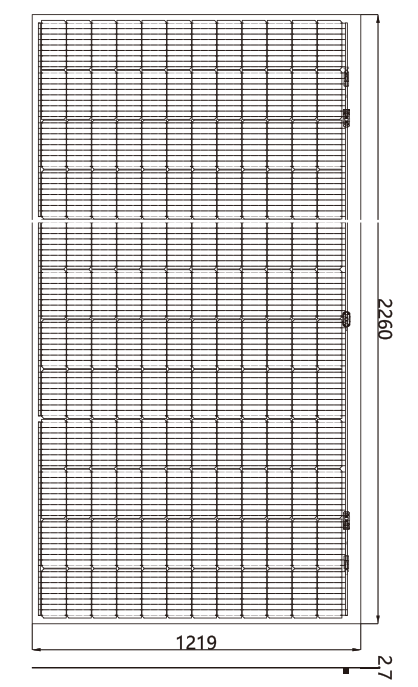

| Module size | 2260x1219x2.7mm |
| Module weight | 7.44kg |
| Junction box | Enclosure rating IP68 |
| Output cable | 4mm², 500mm cable net length. Cable length can be customized |
| Connector type | MC4 compatibility |
| Frame | N/A |
| Front static load (snow pressure) | 5400Pa |
| Rear static load (wind pressure) | 2400Pa |
PACKING DETAILS
| Transportation | Platform Lorry 13m |
Platform Lorry 17.5m |
Container 20'C |
Container 40'C |
|---|---|---|---|---|
| Size | 13m | 17.5m | 20'C | 40'C |
| Pallet | 22 | 30 | 4 | 18 |
| Piece/Pallet | 70 | 70 | 70 | 70 |
| Total pieces | 1540 | 2100 | 280 | 1260 |
| Packaging size(Pallet) | 2320*1110*1400mm | |||
PRODUCT FEATURE
High reliability in harsh environment testing
High flexibility fit all kinds of roofing
The lack of scaffolds cuts labor and reduces costs
Customizable dimensions save transportation costs
Realize mobile energy through various uses
MULTIPLE SPECIFICATIONS
Passed multiple test requirements recognized by TÜV SUD
Hail Test √
25mm ice ball, 23m/s speed
Flammability/Fireresistance Test √
Load Test √
UV/ Wet Leakage Test √
TC200/DH1000(Durability) √
HF(Wet Freezing Test) √
| Maximum power(W) | Conversion Efficiency | Weight | Product Warranty | Power Warranty | Module Sizes | Cell Arrangement |
|---|---|---|---|---|---|---|
| 550 560 570 580 | 23.5% | 2.7kg/m² | 12years | 25years | 2260x1219x2.7mm | 144pcs(12x12) |
| 500 510 520 530 | 23.5% | 2.7kg/m² | 12years | 25years | 2260x1110x2.7mm | 132pcs(11x12) |
| 460 470 480 490 | 23.5% | 2.7kg/m² | 12years | 25years | 2260x1020x2.7mm | 120pcs(10x12) |
| 410 420 430 440 | 23.5% | 2.7kg/m² | 12years | 25years | 2260x918x2.7mm | 108pcs(9x12) |
| 360 370 380 390 | 23.5% | 2.7kg/m² | 12years | 25years | 2260x825x2.7mm | 96pcs(8x12) |
| 320 330 340 350 | 23.5% | 2.7kg/m² | 12years | 25years | 2260x735x2.7mm | 84pcs(7x12) |
| 270 280 290 300 | 23.5% | 2.7kg/m² | 12years | 25years | 2260x644x2.7mm | 72pcs(6x12) |
| 120 | 23.5% | 2.7kg/m² | 12years | 25years | 1545x425x2.7mm | 72pcs(6x12) |
| 200 | 23.5% | 2.7kg/m² | 12years | 25years | 1150x927x2.7mm | 54pcs(6x9) |
| 400 410 420 430 | 23.5% | 2.7kg/m² | 12years | 25years | 1750x1150x2.7mm | 80pcs(8x10) |
