SMART INTEGRATED SOLAR STREET LIGHT

Short Description:

LED Power: 20W~60W

Pole Height: 5m~9m

Luminous Efficiency: > 130 lm/w

Application scenario: City road, Street, Highway, Public area, Commercial district, Parking lot, Park, Campus.


Product Detail

Product Tags

LED Street Lamp

1

LED Power

20W~60W

Input Voltage

DC24V

Fixture Materials

ADC12 die-cast aluminum

Chip Brand

Philips Bridgelux

Chip type

3030 chip

Lumination Distribution

Bat wing shape

Luminaire Efficiency

>130lm/W

Color Temperature

3000~6000k

CRI

≥ Ra70

LED Lifespan

> 50000h

IP Grade

IP65

Working Temperature

-40"C~+50"C

Working Humidity

10%-90%

Solar Panel

2

Module Type

Polycrystalline/Mono crystalline

Range Power

50W~290W

Power Tolerance

±3%

Solar Cell

Polycrystalline or Monocrystalline 156*156mm

Cell efficiencty

17.3%~19.1%

Module efficiency

15.5%~16.8%

Operating temperature

-40℃~85℃

Type of connector

MC4 ( Optional )

Nominal operating cell temperature

45±5℃

Lifetime

More than 25 years

Lithium Battery Device ( with PWM controller and battery box integrated )

3

Type

Square Lithium Battery

Operating Voltage

12V

Rated capacity

24AH~80AH

Battery discharging working temperature

-5℃~60℃

Battery charging working temperature

0℃~65℃

Battery storage working temperature

-5℃~55℃

Working humidity

No more than 85% RH

Rating Current

10A

Protection Mode

Overcharge, over-discharge and overload protection, as well as short-circuit and reverse connection protection

Controller Efficiency

>95%

Lifetime

5~7 years

Lighting Pole

4

Material

Q235 Steel

Type

Octagonal or Conical

Height

3~12M

Galvanizing

Hot dip galvanized (average 100 micron)

Powder Coating

Customized powder coating color

Wind Resistance

Designed to with stand wind speed of 160km/hr

Life Span

>20 years

Solar Panel Bracket

5

Material

Q235 Steel

Type

Detachable type for solar panel equal or smaller than 200W;
Welded type for solar panel bigger than 200W

Bracket Angle

Designed according to the latitude of the installation location;
Bracket whose degree is adjustable can be offered by SOKOYO as well

Bolts and Nuts Material

Stainless Steel

Galvanizing

Hot dip galvanized (average 100 micron)

Powder Coating

Customized powder coating color

Life Span

>20 years

Anchor Bolt

6

Material

Q235 Steel

Bolts and Nuts Material

Stainless Steel

Galvanizing

Cold dip galvanized process ( optional )

Features

Detachable, helping to save transport space and cost

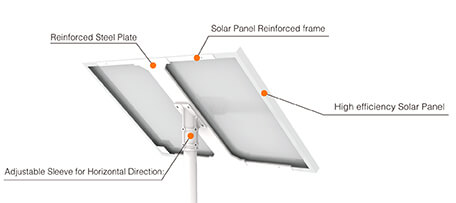

Solar Panel

6
5

Lithium Battery/Controller

8
7

Installation Notes

9

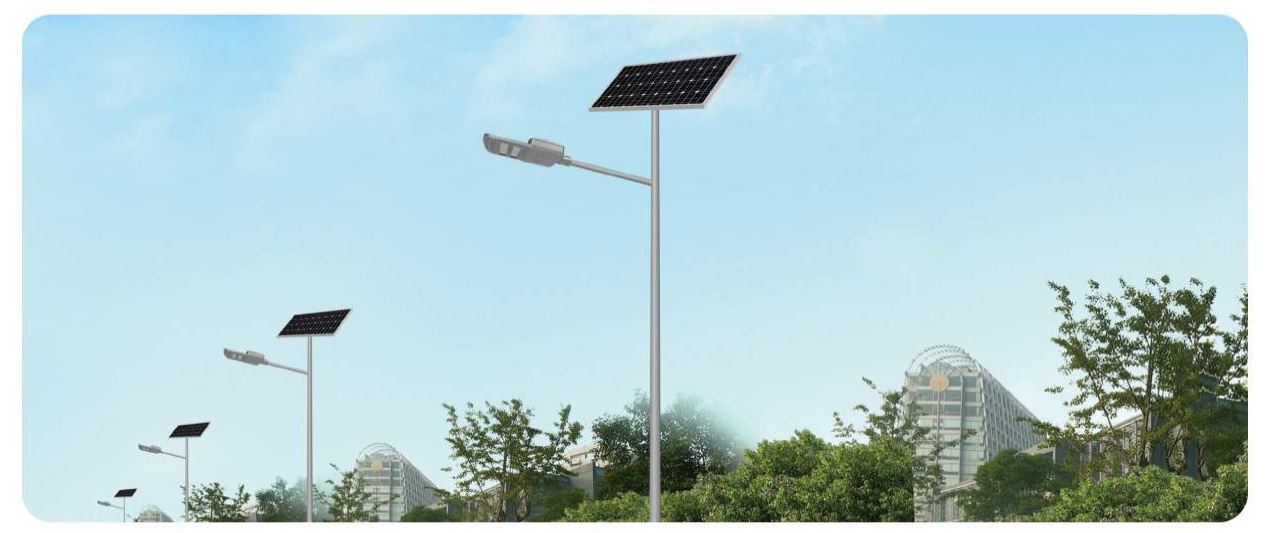

Effect Display

7
